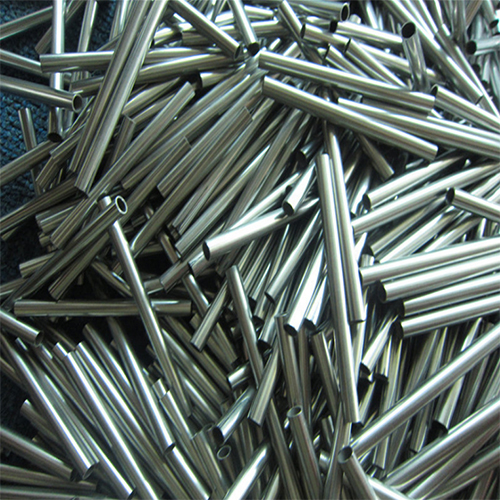

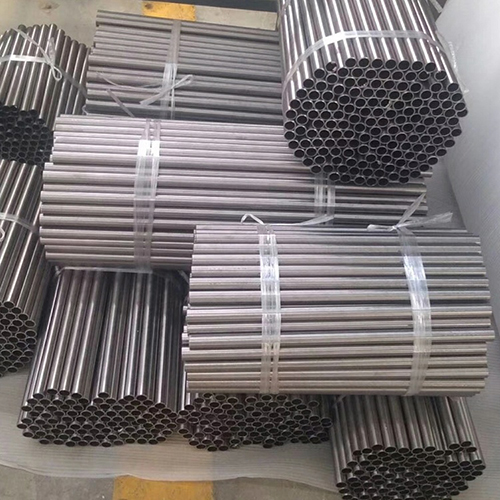

ASTM B861 Titanium and Titanium alloy Capillary tube/pipe
Product name: ASTM B338 Titanium and Titanium alloy Capillary tube/pipe
Density: 4.51g/cm3
Standard: ASTM B861 ASTM B338 ASTM B337,ASTM B862
Size:
OD :3-114mm or as customized
Wall Thickness: 0.2-50mm or as customized
Length：10- 6000mm
Shape: Round, Square ,Flat ,Coil
Type: Seamless, Welded, ERW, Fabricated
End: Plain End, Beveled End, Threaded
Color: Silver
Grade:
Gr1,Gr2,Gr3,Gr4,Gr5(Ti-6Al-4V),Gr7,Gr9,Gr11,Gr12,Gr23(Ti-6Al-4V Eli)
Surface: Polished, Machining, Acid Pickling
Application:
Off-Shore Oil Drilling Companies, Power Generation, Petrochemicals, Gas Processing, Specialty Chemicals
,Pharmaceuticals, Pharmaceutical Equipment, Chemical Equipment, Sea Water Equipment, Heat Exchangers
,Condensers, Pulp and Paper Industry
Feature:
1. Low Density and High Specification Strength
2. Excellent Corrosion Resistance
3. Good Resistance to Effect of Heat
4. Excellent Bearing to Cryogenics Property
5. Nonmagnetic and Non-toxic
6. Good Thermal Properties
7. Low Modulus of Elasticity
|
Grade
|
N
|
C
|
H
|
Fe
|
O
|
Al
|
V
|
Pd
|
Mo
|
Ni
|
Ti
|
|
Gr1
|
0.03
|
0.08
|
0.015
|
0.2
|
0.18
|
/
|
/
|
/
|
/
|
/
|
Remain
|
|
Gr2
|
0.03
|
0.08
|
0.015
|
0.3
|
0.25
|
/
|
/
|
/
|
/
|
/
|
Remain
|
|
Gr3
|
0.05
|
0.08
|
0.015
|
0.3
|
0.35
|
/
|
/
|
/
|
/
|
/
|
Remain
|
|
Gr4
|
0.05
|
0.08
|
0.015
|
0.5
|
0.4
|
/
|
/
|
/
|
/
|
/
|
Remain
|
|
Gr5
|
0.05
|
0.08
|
0.015
|
0.4
|
0.2
|
5.5~6.75
|
3.5~4.5
|
/
|
/
|
/
|
Remain
|
|
Gr7
|
0.03
|
0.08
|
0.015
|
0.3
|
0.25
|
/
|
/
|
0.12~0.25
|
/
|
/
|
Remain
|
|
Gr9
|
0.03
|
0.08
|
0.015
|
0.25
|
0.15
|
2.5~3.5
|
2.0~3.0
|
/
|
/
|
/
|
Remain
|
|
Gr12
|
0.03
|
0.08
|
0.015
|
0.3
|
0.25
|
/
|
/
|
/
|
0.2~0.4
|
0.6~0.9
|
Remain
|

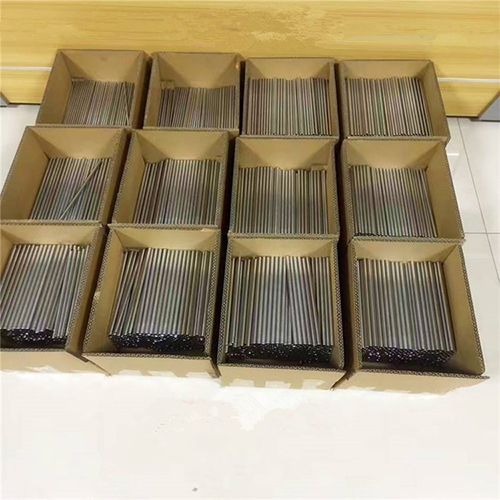

Packing
Plywood case or According to customer requirements
